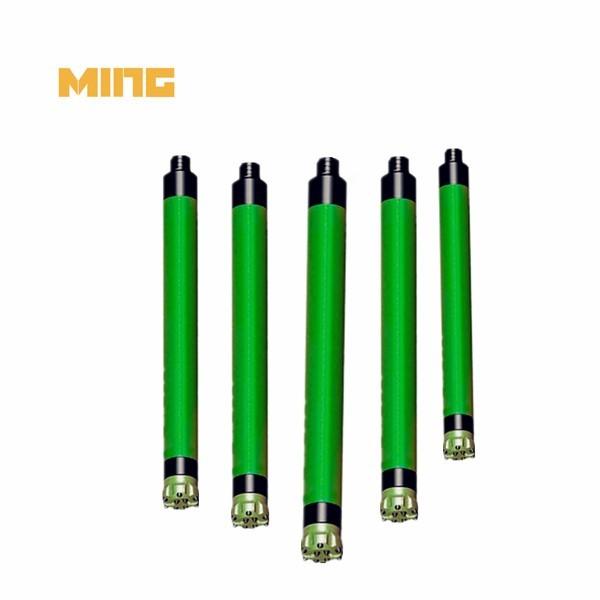

3inch DTH Down The Hole Hammer With DHD3.5 Shank

Product Categories
Wuhan Kingdrilling Diamond Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

3inch DTH Down The Hole Hammer With DHD3.5 Shank

  • 1
  • 2
  • 3

Brand Name : MING

Model Number : MH35D

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PC

Price : 999-99999USD/PC

Payment Terms : T/T, D/P, Western Union

Supply Ability : 2000PCS/MONTH

Delivery Time : 3-5WEEKS

Packaging Details : WOODEN CASE

Application : Ground engineering

Color : blue,Yellow,glod(as you need),black or others,Accept customization

Product name : rical Engineering Low Pressure Dth Hammers Down The Hole Drill Pdc Bit

Hammer material : High carbon steel

Hammer type : DTH HAMMER

After-sales service provided : Video technical support,Engineers available to service machinery overseas,Online support,Overseas service center available

Warranty : 1 Year

Material : Carbon steel

Type : Down The Hole Hammers /DTH Hammers for sale

Processing type : Forging

Usage : Quarry

Quality : Top Brand China

Air consumption : 0.5-2.5Mpa

Oem : YES

Contact Now

Product name: 3inch high air pressure DTH hammer with DHD3.5 shank

Product category: Drilling rig accessories

Matched hammer: Hammer DHD3.5

Connection thread: API 2 3/8 REG

Working pressure(bar): 7~25

Outer diameter(mm): 82

Weight(KGS): 25

Bit diameter recommend(mm): 90~105

High air pressure DTH hammer with DHD3.5 shank details:

Rock drilling tools manufacturer KINGDRILLING DTH hammers are available in sizes from 2" to 33" for Down The Hole hammer bits are available in sizes from 2" to 48", with all shanks, multiple face, and with a variety of tungsten carbide button styles to suit a wide variety of drilling conditions and rock formation.

High air pressure DTH hammer with DHD3.5 shank technical parameters:

Model

OD

(mm)

Hole range

(mm)

Length(mm)

Connection
Thread

Working
pressure

(Mpa)

Air Consumption

Weight

(Kg)

MH35D

82

90~115

888

API2-3/8"REG

1.0~1.5

1.0Mpa-3.8m3/min

1.5Mpa-7.5m3/min

25

MH40D

99

110~135

1011

API2-3/8"REG

1.2~2.0

1.0Mpa-6m3/min

1.8Mpa-10m3/min

2.4Mpa-15m3/min

43.2

MH50D

125

135~155

1110

API2-3/8"REG/API2-7/8"IF/API3-1/2"REG

1.3-2.3

1.0Mpa-7m3/min

1.8Mpa-14m3/min

2.4Mpa-19m3/min

69

MH60D

142

155~203

1238

API3-1/2"REG

1.5~3.0

1.0Mpa-9m3/min

1.8Mpa-18m3/min

2.4Mpa-26m3/min

98

MH80D

180

195~254

1359

API4-1/2"REG

1.5~3.0

1.0Mpa-12m3/min

1.8Mpa-22m3/min

2.4Mpa-28m3/min

175

How to order?
Shank Type + Top Sub Thread + (With/Without Valve, if this parameter is optional)

FAQ:

1. How to order the products?

A: Please send the inquiry with detail item description or with Model number.

2. Can I expect a quality products?

A: Yes. mature production technology ensuring the quality satisfy international request.

3. How to make sure the quality?

More than 40 Years engineer to make sure the quality, 100% inspection

4. Competitive price:

A:KINGDRILLING factory can supply you the lowest price due to direct sale to customers without distributor!

5. What is the Application?

Mining, Quarrying, Tunneling, Construction, Geological Exploration, Water-well Drilling, Oilfield & Gas Industries.
