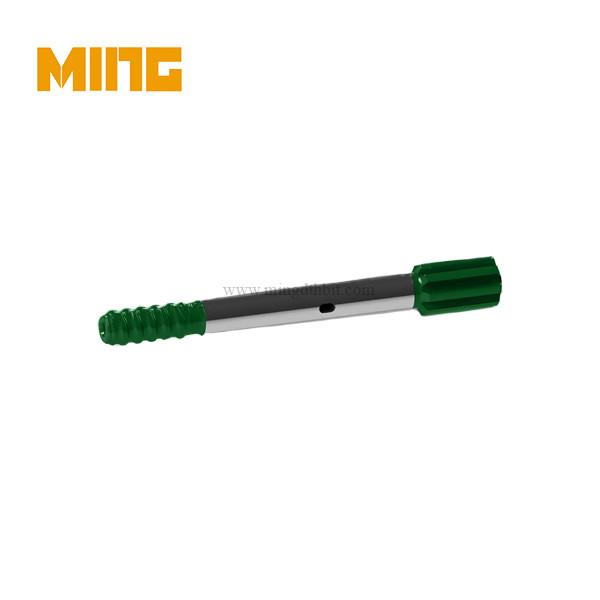

Product name: Factory direct sale Drill shank adapter for hydraulic rock drill
Product category: Shank adapter
Matched: Atlas Copco COP 1432, COP 1532, COP 1440, COP 1838 HD/ME
Thread: R38
Length: 435MM
KINGDRILLING shank adapter description:
KINGDRILLING shank adapters are carburized, manufactured by CNC machine, and made from premium steel, which ensure them with superior toughness and anti-fatigue strength to meet the most requirement of drilling conditions.
The function of the shank adapter is to transmit rotation torque, feed force, impact energy and flushing medium to the drill string.
KINGDRILLING shank adapter features:
1. High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
2. Accurate dimension of thread perfectly matches the rock drill
3. Work reliable and very cost-effective
| Item | Thread | Length | Diameter | Weight | Flushing Tube |
| mm | mm | kg | mm |
Atlas Copco COP 1440, COP 1550, COP 1838
Bench Drilling | R32 (1 1/4") | 525 | 52 | 5.7 | - |
| T38 (1 1/2") | 525 | 52 | 5.9 | - |
| T45 (1 3/4") | 525 | 52 | 6.1 | - |
| T51 (2") | 525 | 52 | 6.5 | - |
Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238
Drifting | R32 (1 1/4") | 435 | 38 | 3.6 | - |
| R38 (1 1/2") | 435 | 38 | 3.9 | - |
| T38 (1 1/2") | 435 | 38 | 3.8 | - |
Atlas Copco COP 1440, COP1838
Bolting - SDA | R32 (1 1/4") | 640 | 52 | 7.5 | - |
Atlas Copco COP 1440, COP 1838
Bolting- SDA, IRIA | R32 (1 1/4") | 640 | 52 | 9.1 | - |
| R38 (1 1/2") | 640 | 52 | 8.9 | - |
Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238
Bench Drilling | R32 (1 1/4") | 585 | 38 | 4.2 | - |
| R38 (1 1/2") | 525 | 38 | 4.3 | - |
| T38 (1 1/2") | 525 | 38 | 4.3 | - |
Atlas Copco COP 1440, COP1550, COP 1638, COP 1838
Bolting, Drifting | T38 (1 1/2") | 435 | 38 | 3.9 | - |
Atlas Copco COP 1638, COP 1838AW
Drifting | R38 (1 1/2") | 455 | 38 | 4.1 | - |
| T38 (1 1/2") | 455 | 38 | 4.1 | - |
Atlas Copco COP 1638, COP 1838AW
Longhole Drilling | R32 (1 1/4") | 525 | 38 | 4.3 | - |
| T38 (1 1/2") | 525 | 38 | 4.5 | - |
KINGDRILLING shank adapter application:
1. Be applied to bench blasting, underground mining and turnneling projects.
2. Kingdrilling shank adapter can transmit torque, feed force, impact energy and flushing medium to the drill string well
3. Specially selected alloy steel which also is hardened through carburizing to ensure the high imact power of modern rock drills.
4. Various shanks can be produced according to the samples and the model of rock drill.
FAQ:
1. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
2. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
3. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
4.What is the general delivery time?
15 working days for DTH bits.
20-25 working days for DTH hammer
3-5 working days for ex stock items.
5. Competitive price:
A: KINGDRILLING factory can supply you the lowest price due to direct sale to customers without distributor!
6. What is the rock drill tools Application?
Mining, Quarrying, Tunneling, Construction, Geological Exploration, Water-well Drilling, Oilfield & Gas Industries.
