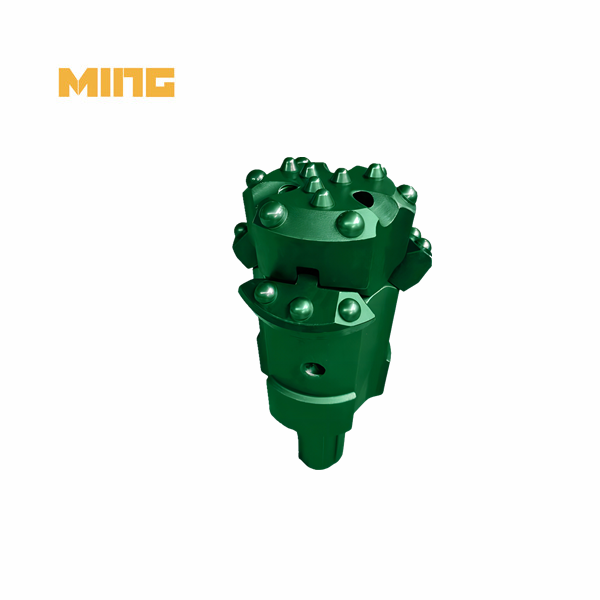

108mm MNS Sliding Five Piece Concentric Drilling System Overburden Casing System

Brand Name : MING

Model Number : MNS5E108-CIR90

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PC

Price : 300-99999USD/PC

Payment Terms : T/T

Supply Ability : 2000PCS/MONTH

Delivery Time : 3-5WEEKS

Packaging Details : WOODEN CASE

Material : Carbon Steel,High Manganese Steel,Alloy Steel

Use : Well Drilling,Ore Mining,Coal Mining

Type : Drill Bit,Symmetrix Casing,odex drilling system,Odex overburden system

Machine type : Drilling Tool

Processing type : Forging,Machining process

Product name : Concentric Casing System,odex drilling system

Color : Gold,Required,Yellow,Red

Application : construction,mining,water well drilling,mining or welling drilling

Usage : Hole Drilling,Mining&Construction&Water Well Drilling

Advantage : High Performance,Widely used hard rocks and have good penetration

Diameter : 105-127mm

Model type : DHD

Name : ODEX System (eccentric Overburden System)

Item : Overburden Drilling Casing System

Hammer type : Overburden drilling system

Button shape : Domed buttons,Spherical/Ballistic/Parabolic/Sharp/Flat,and ballistic shapes buttons

Standard : ISO 9000

Advantages : high strength,High quality and factory prices

Contact Now

Product Name: 108mm MNS Sliding five-piece concentric overburden casing drilling system for hammer CIR110 shank

Product category: Overburden eccentric casing bit

Matched hammer: Hammer CIR110

Matched casing pipe OD: 108mm

MNS Sliding five-piece concentric overburden casing drilling system feature:

When the guide bit reaches to the rock stratum, the stabilizer rod and guide bit begin to fold, the reamer bits expand along the sliding chute and start to drill; when finished, the stabilizer rod is lifted, the guide bit is automatically separated by gravity and the reamer bits are automatically gathered, thus lifted from the bottom of the hole. This drilling system is mainly applied for 108-323mm.

108mm MNS Sliding Five Piece Concentric Drilling System Overburden Casing System

MNS Sliding five-piece concentric overburden casing drilling system technical data:

型号 头部直径
head dia.(mm)		 钻孔直径 挂台直径
Shank step dia.(mm)		 套管直径 扩块 花 键

系统重量

Weight (KG)
Model Hole dia (mm)

Casing pipe

OD
dia(mm)

Wings

(PCS)

 Spline
MNS5E108 84 122 93 108 2 CIR90/HD35/DHD3.5 9/10
MNS5E127 101 145 110 127 3 CIR110/HD45/DHD340 12.5/14
MNS5E146 120 164 129 146 3 CIR110/HD45/DHD340 19/20.5
MNS5E168 137 184 147 168 3 CIR110/HD55/DHD350 27.5/34.5
MNS5E178 146 193 156 178 3 CIR150/HD55/DHD350 33.5/35.5
MNS5E194 161 214 171 194 3 CIR150/HD65/DHD360 45/51.5
MNS5E219 189 235 200 219 3 CIR150/HD65/DHD360 56/62.5
MNS5E245 208 270 219 245 3 CIR170/HD65/DHD360 97/102
MNS5E273 240 293 251 273 3 HD85/DHD380 142
MNS5E323 280 345 296 323 3 HD85/DHD380 200

Order Guide: Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style

FAQ:

1. How to order the products?

Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style

2. How about the common packing?

A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.

3. How to control quality?

A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.

4.How deep can a water well be drilled?

Drilling a Water Well for household use will usually range from about 100 feet to 500 feet deep, but... When drilling a new well for your home or business, the depth of the well depends on the geology and underground water levels of the area.

More information:

108mm MNS Sliding Five Piece Concentric Drilling System Overburden Casing System108mm MNS Sliding Five Piece Concentric Drilling System Overburden Casing System108mm MNS Sliding Five Piece Concentric Drilling System Overburden Casing System108mm MNS Sliding Five Piece Concentric Drilling System Overburden Casing System
