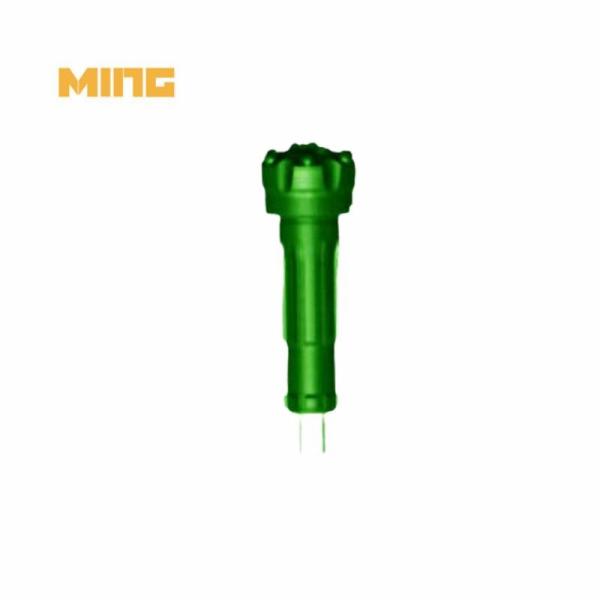

Product name: 85mm 3 Inch COP34 Down Hole DTH Drill Button Bits For Coal Mining Equipment
Product category: DTH drill tools
Diameter: 85 mm
KINGDRILLING high air pressure DTH button bit description:
Thanks to its dependable quality and high cost performance, Kingdrilling has emerged as The Driller's Choice for a number of small and medium-sized mining projects worldwide. The company can supply and service Kingdrilling equipment in even the most remote and difficult-to-reach locations.
For exploration, mining, DTH, piling, water well drilling, and blasting activities, Kingdrilling provides a full variety of industry-leading drilling products.
Kingdrilling's commitment to its AIM principle—reliable, implement, and responsibility—supports this robust supply chain. With this, we can guarantee optimal efficiency and productivity while satisfying the drilling requirements of our mining and quarrying clients.
KINGDRILLING 3 Inch high air pressure DTH button bit technical parameters:
| 3 Inch High Air Pressure DTH bits |
| Model | Bit Dia. (mm) | NO. X Button Dia. | NO. Air Holes (PCS) | Weight(KG) |
| Gauge | Front |
| MDCOP34-85 | 85 | 6*Φ13 | 4*Φ12 | 2 | 4.2 |
| MDCOP34-90 | 90 | 6*Φ14 | 4*Φ12 | 2 | 4.5 |
| MDCOP34-95 | 95 | 6*Φ14 | 4*Φ13 | 2 | 4.8 |
| MDCOP34-100 | 100 | 6*Φ14 | 5*Φ12 | 2 | 5.0 |
| MDCOP34-105 | 105 | 6*Φ14 | 5*Φ13 | 2 | 5.5 |
Kingdrilling DTH bit advantage:
1. All main drill bit shank designs are available.
2. There are three types of drill bit faces: concave, flat, and convex.
3. A variety of carbide designs and grades for use in a variety of ground conditions
4. Exclusive heat-treatment method for increased hardness and wear resistance
5. Regional production for shorter lead times.
FAQ:
1. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
2. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
3. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
4. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
5. What is DTH Bit?
Down-the-hole (DTH) hammer bits are used with Down-the-hole hammers for drilling holes through a wide range of rocks types. In conjunction with DTH hammers, drill hammer bits are designed with a splined drive for rotating the bit in the ground.
6. What is DTH hammer?
Down-the-hole drilling (DTH) essentially involves a drilling hammer at the bottom of a drill string. It relies on three elements for drilling holes: bit loading (weight), rotation and air. These active elements combine to be efficient at crushing rock.
7. How does DTH drilling work?
A down-the-hole drill, usually called DTH by most professionals, is basically a jackhammer screwed on the bottom of a drill string. The fast hammer action breaks hard rock into small cuttings and dust that are evacuated by a fluid (air, water or drilling mud).
8. What is a hammer bit?
Hammer drills are designed to quickly drill through brittle materials like concrete by combining the rotary action of the drill bit with a hammer action that moves the drill bit in and out of the hole along the bit's axis to provide a pounding action along with the drilling motion of the bit.
